Our films, featuring high functionality and sophisticated design achieved by superior manufacturing technologies,
are familiar to everyone and ideal for a variety of purposes.
Jan. 2022
RIKEN TECHNOS CORP.
INNOVATIVE FILM BUSINESS UNIT
FEATURES
Good VLR Reduction: AR-M can reduce Visual Light Reflection below 1.0%.
High Abrasion Resistance:
- Pencil Hardness: 2H
- Gauze Abrasion: 15,000 times
Great Weatherability: AR-M2 is the industry's first product suitable for exterior use.
- Passed SWOM 2000hrs
- Endure outdoor exposure testing over 2 years

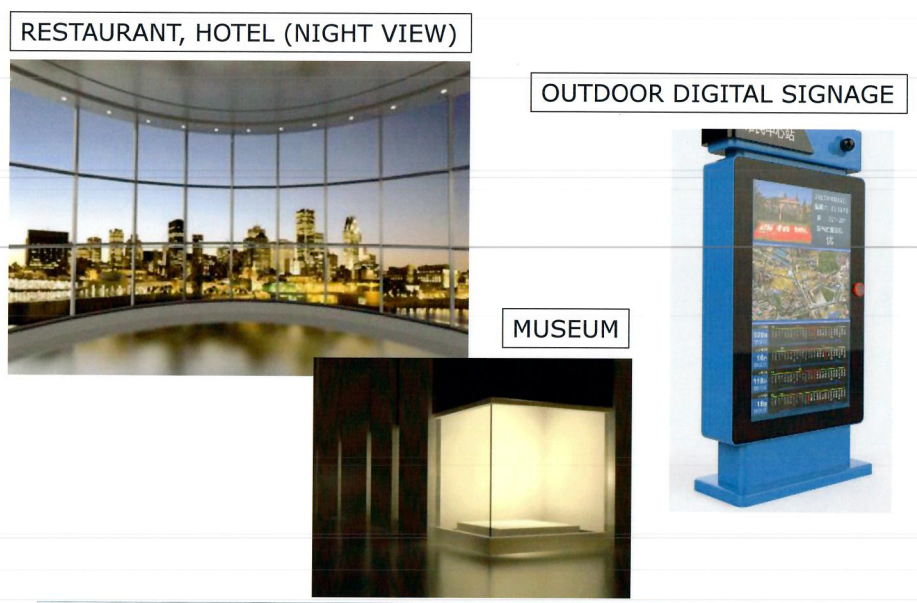

APPLICATION
RESTAURANT, HOTEL (NIGHT VIEW)
OUTDOOR DIGITAL SIGNAGE
MUSEUM
LINE-UP
AR-M: Excellent AR performance, Interior use
AR-M2: Good AR performance, Exterior use
Both have anti-scattering and UV protection function
STRUCTURE
AR Coating | PET | Adhesive Layer | Liner
Total Thickness exc. Liner
AR-M: 75µm
AR-M2: 78µm
DIMENSION
WIDTH: 1,220mm/1,500mm
LENGTH: 30M/roll
CHARACTERISTIC
Item
Method/Spec.
AR-M
AR-M2
Thickness (PET)
Thickness Gauge (µm)
75µm (50µm)
78µm (50µm)
Haze
JIS K7136 (%)
0.4
0.9
VLT
JIS A5759 (%)
97%
96%
VLR
JIS A5759 (%), Angle: 5°
0.9
1.4
UV Rejection
JIS A5759 (%)
≥99.8
>99.9
Pencil Hardness
JIS K5400 (Load: 200g)
2H
2H
Abrasion Resistance
Gauze Abrasion (Load: 500g)
15,000 times
15,000 times
Adhesive Strength
JIS A 5759 (N/25mm)
13
13
Optical data are measured with film laminated on both sides of 3mm float glass.
*All data are measured value not guaranteed.
WEATHERING TEST-1
RESULT OF SWOM 2,000hrs
No significant change on AR-M2 maintaining good AR performance!
WEATHERING TEST-2
RESULT OF 2Y OUTDOOR EXPOSURE
No significant change on AR-M2 maintaining good AR performance!
ICE-µ is a high-performance automotive film created with Japanese optical design technology.
In addition to its high heat insulation, this film has excellent uniformity and transparency.
When applied to window glass, it creates a comfortable interior space with clear visibility.
ICE-µ has been adopted as a genuine product by major automobile manufacturers in Japan as well as Europe and the United States.
It is chosen worldwide by customers who are particular about quality.
Under the motto of making more comfortable spaces with the power of film equipped with unique original functions,
we are constantly working to develop products that anticipate customer needs.
Ultra Nano Film Technology
We have incorporated some of the core technology that RIKEN TECHNOS has been developing for many years.
Our revolutionary wavelength control design and precise coating technology block infrared and UV rays.
We have achieved high transparency and electromagnetic wave transmission.
LINE UP
ICE-µ is offered in the Basic Series with basic performance and the Unique Series with unique functions.
Choose the one that best suits your needs.
Basic Series
The lineup includes four grades according to color, heat insulation performance, affordability, and so on,
while providing basic performance such as UV ray blocking and electromagnetic wave transmission.
Color: Sky blue
“RT-series” is a globally compatible model that combines practicality with compliance to international regulations.
While maintaining high solar heat rejection performance, it meets the visible light transmission standards for front
windshields in various countries. Designed with a balanced approach to safety, comfort, connectivity, and privacy
protection, this standard model is trusted across global markets.
Key Features
Optimal Balance of Heat Rejection and Regulatory Compliance: Effectively blocks solar heat while achieving legal transmission rates, ensuring both comfort and peace of mind.
Clear and Sharp Visibility: Engineered to prioritize driving safety by minimizing visual obstructions.
Electromagnetic Transparency for Seamless Device Operation: Supports stable performance of GPS and communication devices, maintaining a comfortable digital environment inside the vehicle.
Privacy Protection with Stylish Appearance: Preserves interior privacy without compromising the vehicle’s sleek exterior design.
Technical Specifications
Item
Unit
RT85
RT70
RT40
RT20
Visible Light Transmission (VLT)
%
85
74
47
41
Haze
%
0.1
0.5
1.3
0.8
Total Solar Energy Rejected (TSER)
%
31
47
57
49
Solar Radiation Transmittance
%
61
38
25
36
IR Rejection Rate
%
60
93
94
92
UV Rejection Rate
%
>99
>99
>99
>99
Note: The infrared rejection rate is calculated by subtracting the average transmittance within the 950–1400 nm
wavelength range—weighted according to ISO 9050 coefficients—from 100%. All values are based on measurements and are not guaranteed.
HEAT INSULATION ●TRANSPARENT ●
Color: Bronze
“RS series” is a versatile model featuring a wide lineup ranging from clear to smoked options.
It emphasizes harmony among heat rejection, visibility, and design, allowing users to choose
flexibly based on personal preferences or vehicle usage. While expressing individuality, it
ensures solid functionality, making it a universal model suitable for both personal and commercial vehicles.
Key Features
Golden Balance of Heat Rejection, Visibility, and Design: No matter which type you choose, comfort and safety are ensured. A highly versatile all-round model.
High Heat Rejection for a Comfortable Cabin: Efficiently blocks solar heat, helping to reduce cabin temperature during summer and easing the load on air conditioning systems.
Clear Visibility for Safer Driving: High optical clarity ensures visibility day and night, enhancing driving safety.
Excellent Compatibility with Communication Devices: Superior electromagnetic transparency supports stable operation of GPS and in-vehicle communication systems, meeting modern connectivity needs.
Technical Specifications
Item
Unit
RS85
RS70
RS50
RS35
RS25
RS15
Visible Light Transmission (VLT)
%
87
70
50
36
25
16
Haze
%
0.2
0.6
0.4
0.5
0.6
0.8
Total Solar Energy Rejected (TSER)
%
27
38
53
59
63
61
Solar Radiation Transmittance
%
66
51
30
23
17
19
IR Rejection Rate
%
50
64
87
89
89
78
UV Rejection Rate
%
>99
>99
>99
>99
>99
>99
Note: The infrared rejection rate is calculated by subtracting the average transmittance within the 950–1400 nm
wavelength range—weighted according to ISO 9050 coefficients—from 100%. All values are based on measurements and are not guaranteed.
HEAT INSULATION ●TRANSPARENT ●
Color: Charcoal gray
“JB series” is a practical model that maximizes the appeal of smoked finishes, emphasizing stylish design without compromising everyday usability.
With excellent shielding and privacy protection, it offers a refined appearance alongside essential performance.
As a smart choice equipped with the necessary features, it enjoys enduring popularity among users.
Key Features
Stylish Appearance with High Shielding Performance: Blocks external views while enhancing the vehicle’s refined design, giving it a sleek and sharp impression.
Popular Smoked Finish for Individuality and Privacy: A model that meets strong demand by combining practicality with design appeal—expressing personality while ensuring comfort.
Supports a Comfortable Cabin Environment: Heat rejection performance helps reduce cabin temperature during summer, contributing to improved air conditioning efficiency.
Technical Specifications
Item
Unit
RS85
RS70
RS50
RS35
RS25
RS15
Visible Light Transmission (VLT)
%
87
70
50
36
25
16
Haze
%
0.2
0.6
0.4
0.5
0.6
0.8
Total Solar Energy Rejected (TSER)
%
27
38
53
59
63
61
Solar Radiation Transmittance
%
66
51
30
23
17
19
IR Rejection Rate
%
50
64
87
89
89
78
UV Rejection Rate
%
>99
>99
>99
>99
>99
>99
Note: The infrared rejection rate is calculated by subtracting the average transmittance within the 950–1400 nm
wavelength range—weighted according to ISO 9050 coefficients—from 100%. All values are based on measurements and are not guaranteed.
HEAT INSULATION ●TRANSPARENT ●
Color: Light neutral
“RU-series” is a strategic flagship model that stands out through proprietary innovations.
By integrating an ultra-multilayer PET structure with advanced coating technologies, it delivers
a comprehensive set of high-performance features—high visible light transmission, superior heat
rejection, exceptional clarity, and excellent connectivity. This next-generation automotive film
is the ideal choice for premium-oriented users and cutting-edge vehicles.
Key Features
Exceptional Heat Rejection with Brightness Maintained: Efficiently blocks solar heat while preserving high light transmission, ensuring a consistently comfortable cabin environment.
Smart Temperature Control via Infrared Reflection: Reduces heat penetration and lowers air conditioning load, contributing to improved fuel efficiency and eco-friendly vehicle performance.
Distortion-Free, Crystal-Clear Visibility: High-precision optical clarity enhances driver visibility and safety under all conditions.
Reliable Connectivity with Electromagnetic Transparency: Ensures uninterrupted communication for GPS and smart vehicle systems, supporting the connectivity demands of modern mobility.
Technical Specifications
Item
Unit
RU90
RU80
RU70
RU50
Visible Light Transmission (VLT)
%
88
80
73
51
Haze
%
0.2
0.2
0.2
0.5
Total Solar Energy Rejected (TSER)
%
34
44
51
59
Solar Radiation Transmittance
%
60
46
36
26
Solar Radiation Reflection
%
17
17
15
16
Solar Radiation Absorption
%
23
37
49
58
IR Rejection Rate
%
67
87
97
97
UV Rejection Rate
%
>99
>99
>99
>99
Note: The infrared rejection rate is calculated by subtracting the average transmittance within the 950–1400 nm
wavelength range—weighted according to ISO 9050 coefficients—from 100%.
All values are based on measurements and are not guaranteed.
HEAT INSULATION ●TRANSPARENT ●
Optional Function Enhancement – Design Possibilities
The lineup maintains the heat insulation, transparency, and electromagnetic wave transmission qualities of the Basic Series,
while adding new functions such as anti-fogging.
TECHNOLOGY
Created through synergy with products for the IT field, our technology provides unprecedented value
with analysis, mixing, and coating at the nano level.
Heat Insulation + Fogging Prevention: ICE-µ fog clears
Car window fogging occurs when there is a large temperature difference between the inside of the car and the outside air.
Especially on the windshield, when this phenomenon occurs, visibility deteriorates and safe driving is affected.
To alleviate this phenomenon, RIKEN TECHNOS proposes ICE-µ fog clears, which is a conventional anti-fog film with the added heat insulation performance proven with ICE-µ.
Especially for EV cars, which are expected to become widely used in the future, conventional defogging systems (defoggers) consume a lot of electricity, and the impact on the car’s running distance is not small.
By installing ICE-µ fog clears, the heat insulation and fogging prevention effects will be enhanced, for a double effect to support a safe and comfortable driving experience.
Other Functions
In addition to the ICE-µ series, RIKEN TECHNOS offers a lineup of various functional glass films to contribute to creating a safe and comfortable society.
Anti-Reflection (AR): Realizes best-in-class anti-reflection performance. The lineup also includes outdoor-use grade and antiviral grade film.
Anti-Fog: This film absorbs moisture on the film surface to prevent glass fogging, and combines high transmittance with scratch resistance.
Anti-Stain: Easy-clean film that can be easily cleaned even if dirt adheres to it.
Rear Projection: A film that is transparent but can be used for projecting images using a projector. It has been adopted for show windows, etc., and is also used in taxi windows for advertising purposes.
Recycling: Film based on recycled raw materials that can be used in the entire lineup from the Basic Series to the Unique Series.
QUALITY ACHIEVEMENT: A Track Record of Trust
In Southeast Asia, where high heat insulation performance is required, our products are recognized for their quality.
They are used as genuine products by major automobile manufacturers, mainly in Japan as well as Europe and the United States.
The fact that ICE-µ has been used continuously since 2015 is proof that it is highly evaluated for its quality,
while high installation yield and long-term reliability are also strongly demanded as standard equipment.
Particularly in Indonesia and Malaysia, the defect rate has remained extremely low at less than 0.01%,
despite the fact that more than 400,000 units have been installed to date.
This quality stability is supported by our inspection system and clean facilities.
Reliable Quality that Supports Trust
Film production is conducted in an environment that maintains the industry’s highest level of cleanliness (Class 100*)
required for precision machinery and electronic component products.
In addition, we make use of the latest equipment to achieve quality control at the micro level.
Contamination is controlled by a defect detector, and the thickness of the hard coat layer is automatically controlled and corrected.
In addition, visual inspections are conducted by skilled technicians before shipment to control product appearance,
which cannot be captured by detectors.
As a result, our delivery results have expanded to include car manufacturers in Japan as well as the United States and Europe,
and we have consistently received high praise for our quality from our customers.
*Number of suspended particles per cubic meter
QUALITY MANAGEMENT: Rigorous Inspections
High-precision defect detectors and strict visual checking by professionals do not miss even the smallest unevenness or coating irregularities.
High quality is maintained by firmly excluding faulty parts.
HIGH FACILITY: Ultra-clean Facilities
Thorough cleaning and high-performance air filters maintain high cleanliness on the production line,
enabling clean coatings free of contamination. Films are manufactured in a clean environment with a cleanliness level of Class 100,
which is comparable to that of a semiconductor plant.
Low Heat Accumulation Film RIVIC® EXTERIOR FILM
Reflect solar heat and reduces heat accumulation in materials.
High weather resistance (equivalent to 10 to 15 years exposure).
Can be applied to various materials (wood, plastic, aluminum, etc.)
Designing with trending dark colors is possible.
SOLAR HEAT REFLECTION
Reflects solar heat (infrared ray) to reduce heat accumulation.
HEAT ACCUMULATION PROPERTIES
Wood Grain Appearance
Remarks
Conventional
New
0 min
80.9°F (27.2°C)
81.9°F (27.7°C)
Surface Temp. Max
145.8°F (63.2°C)
177.8°F (81.0°C)
Surface Temp. Min
25.3
25.1
Black Appearance
Remarks
Conventional
New
0 min
82.0°F (27.8°C)
82.6°F (28.1°C)
Surface Temp. Max
170.6°F (77.0°C)
193.4°F (89.6°C)
Surface Temp. Min
30.0
30.0
All values are measured values and are not guaranteed.
Test Conditions
Light source: Solar simulator (Artificial sunlight)
Irradiance: 1,000W/m²
Irradiation distance: 300mm
Cumulative energy value: 4.05MJ/m²
HEAT STORAGE TEST
Continuous Solar Simulator Irradiation Test
Shows reduced heat accumulation with the new RIVIC® EXTERIOR FILM.
WEATHER RESISTANCE
Ultra-Accelerated Testing
*Note 1: Irradiated with ultraviolet rays 20 to 30 times stronger than sunlight.
Ultra-accelerated testing 50 to 100 times stronger than outdoor exposure testing.
**All values are measured values and are not guaranteed.
Annual Hours of Sunshine (Note 2)
Los Angeles: 3254hr
New York: 2535hr
Madrid: 2679hr
Sydney: 2497hr
Japan Ave.: 2089hr
*Note 2: Source: Sunshine hours in major cities around the world and Japan (World Meteorological Organization).
CONTACT US
RIKEN U.S.A. CORPORATION
TEL: (+1)-248-513-3511
E-mail: karin@riken-usa.com / kane@riken-usa.com
Introduction of Exterior Film
RIKEN TECHNOS Corp. Nov. 2024
Application Example <window profile>
Advantage
Good for window profile made by plastic, aluminum etc.
Good weather and IR resistance.
Low heat storage of the film protect plastic profile from heat, leading to longer life of window profile.
Energy saving by avoiding radiant heat inside room.
By collaborating with graphic design company in our group, variety of design could be possible per customer's requirement.
Application Example <outdoor furniture>
Advantage
Good for surface of outdoor furniture, handrail at balcony, louver etc.
Good weather and IR resistance.
Low heat storage of the film.
Wood panel with our film contribute lighter weight compared to glass/metal etc. (estimated 1/3 weight).
Film with adhesive on back could be possible for easy installation.
AR-M/AR-M2
